Special Selective Soldering Nozzles

Browse special-geometry selective soldering nozzles by reference part number and verified engineering specifications, or request a custom nozzle.

Quick answer

A Special nozzle has a non-standard geometry recorded for a particular reference part number. Selection requires drawing comparison and machine-configuration confirmation.

Filter products

Showing 1–10 of 10 nozzles

Compatible selective wave solder special nozzle 5/24 mm H=46 B14.1/B22, reference part number 223539.

223539

ID/AD:5.0/24.0
Height:H=46
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

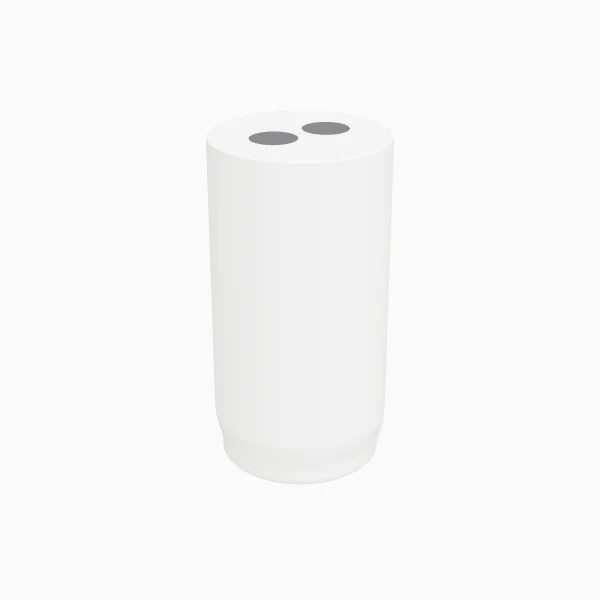

Compatible selective wave solder special nozzle 8/24 mm H=46 B14.1/B22, reference part number 223544.

223544

ID/AD:8.0/24.0
Height:H=46
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

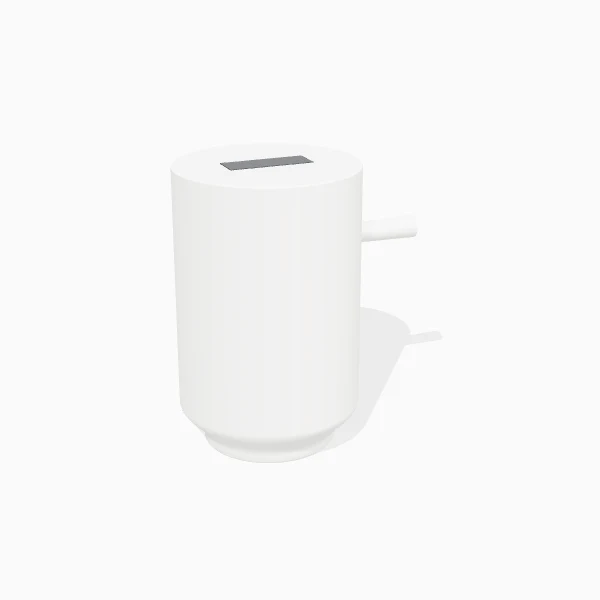

Compatible selective wave solder special nozzle 4/30 mm H=47 B14.1/B22, reference part number 248276.

248276

ID/AD:4.0/30.0
Height:H=47
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

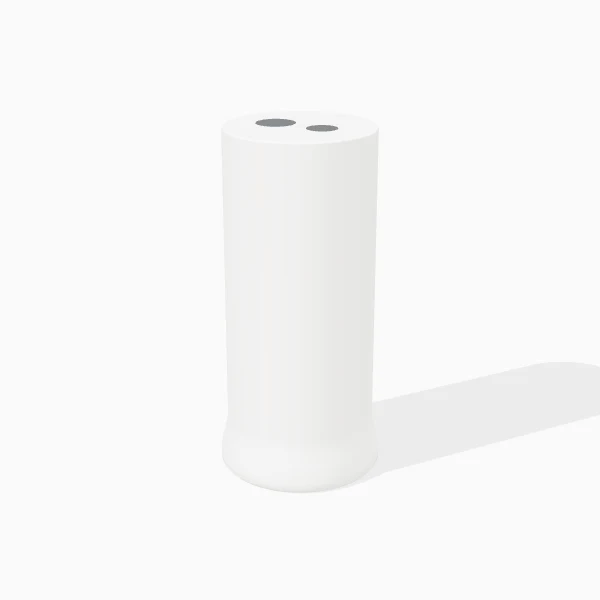

Compatible selective wave solder special nozzle 5/20 mm H=47 B14.1/B22, reference part number 266283.

266283

ID/AD:5.0/20.0
Height:H=47
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

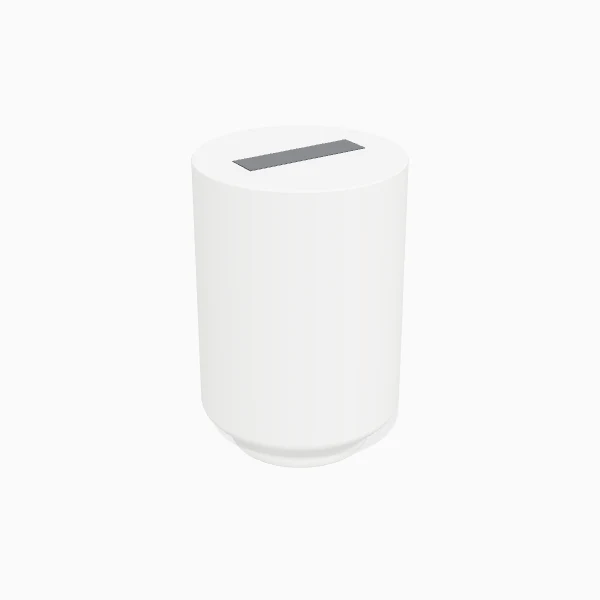

Compatible selective wave solder special nozzle 15/31 mm H=46 B14.1/B22, reference part number 272385.

272385

ID/AD:15.0/31.0
Height:H=46
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

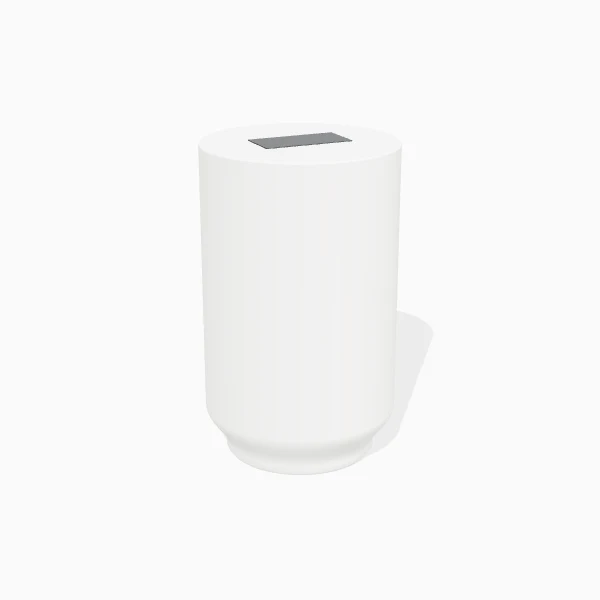

Compatible selective wave solder special nozzle 14/28 mm H=46 B14.1/B22, reference part number 272476.

272476

ID/AD:14.0/28.0
Height:H=46
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

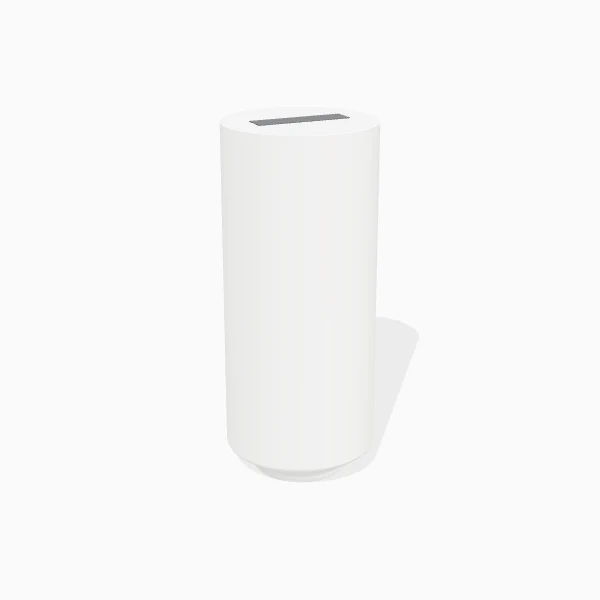

Compatible selective wave solder special nozzle 35/8 mm H=83 B14.1/B22, reference part number 273362.

273362

ID/AD:35.0/8.0
Height:H=83
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

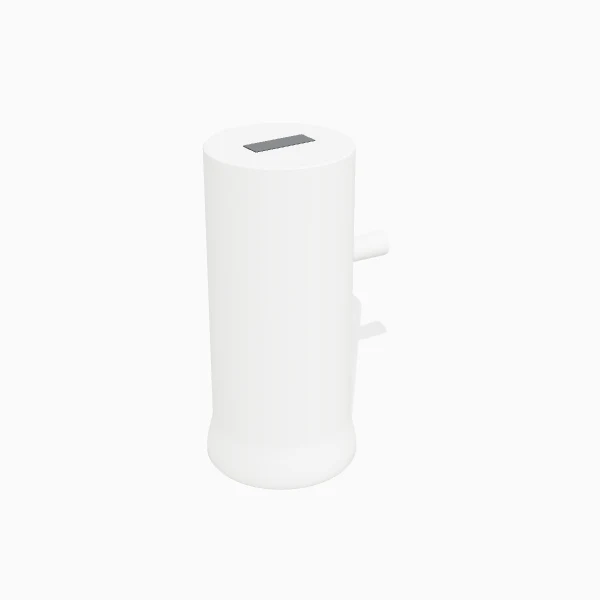

Compatible selective wave solder special nozzle 5/20 mm H=47 B14.1/B22, reference part number 273501.

273501

ID/AD:5.0/20.0
Height:H=47
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

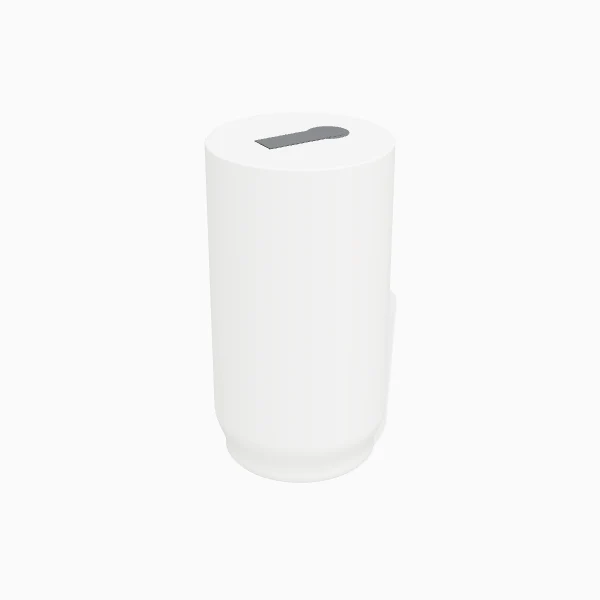

Compatible selective wave solder special nozzle 10/25 mm H=47 B14.1/B22, reference part number 289533.

289533

ID/AD:10.0/25.0
Height:H=47
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

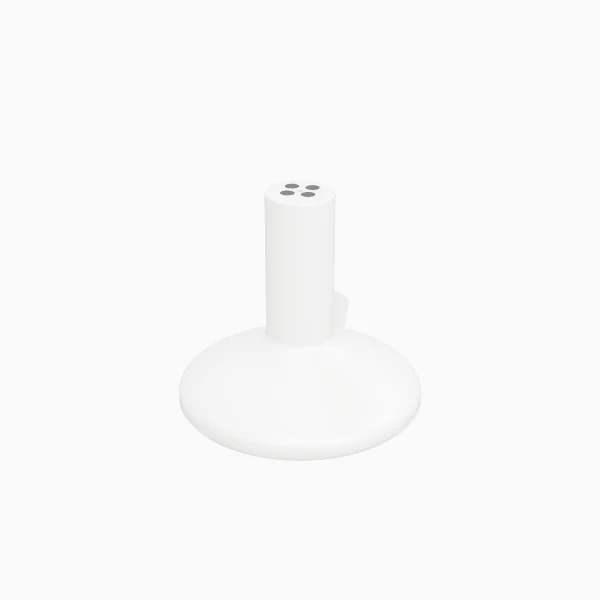

Compatible selective wave solder special nozzle 3/6 mm H=20 B14.1/B22, reference part number 289546.

289546

ID/AD:3.0/6.0
Height:H=20
Base:B14.1/B22
Type:Special
MOQ:1 pc
CompatibleSpecial
View Details

How to confirm compatibility

  1. Match the full reference part number.
  2. Check ID/AD, height and current or legacy base.
  3. Compare the engineering drawing and nozzle type.
  4. Confirm the machine configuration during quotation.

Need a non-catalog size?

Send a drawing, dimensions or an old nozzle sample for custom evaluation.

Custom NozzleSend Photo
