Reference 289546 is a Special compatible selective soldering nozzle with ID/AD 3.0/6.0, height H=20, base B22 and legacy base B14.1. Compatibility and quote status require confirmation against the drawing and equipment configuration.

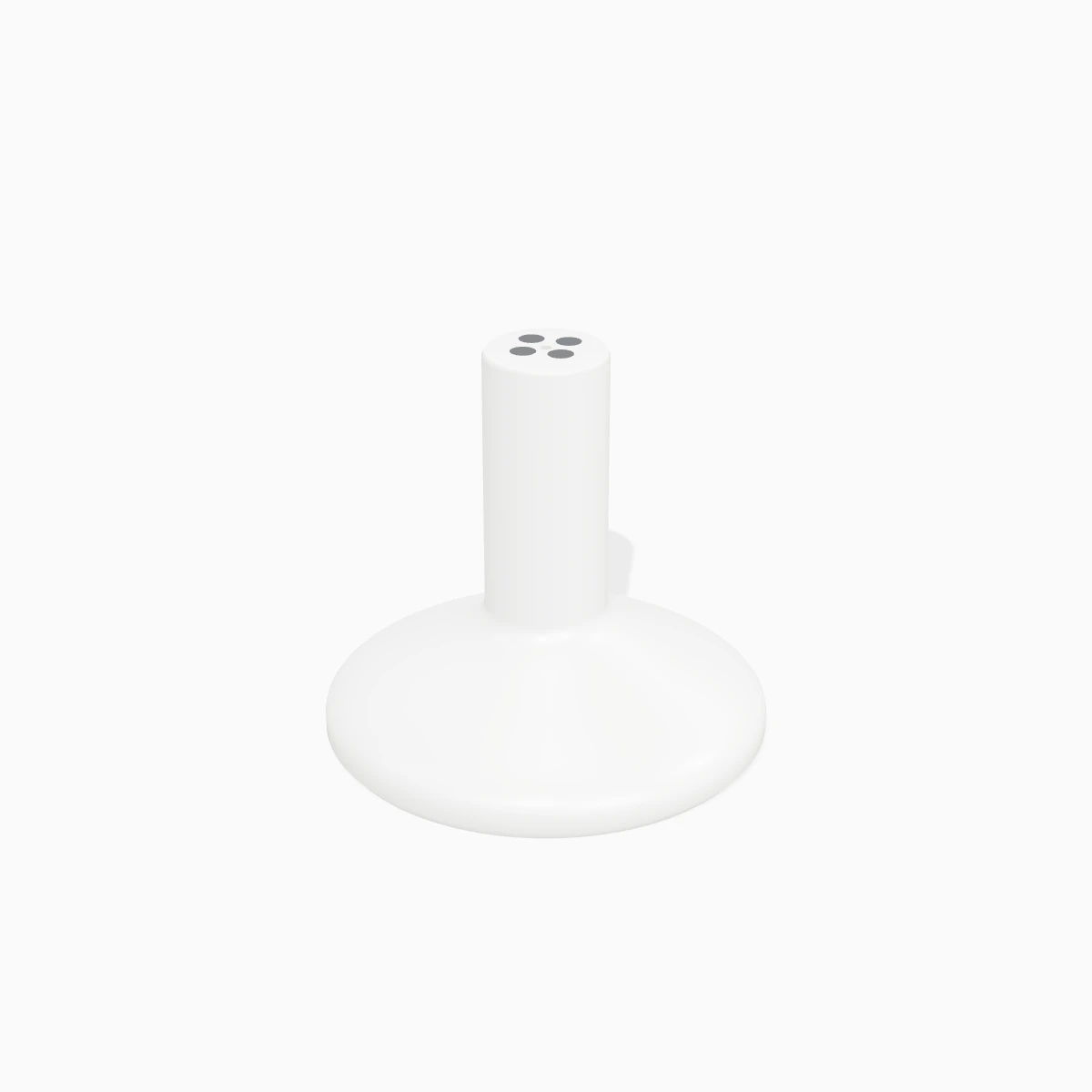

289546 Compatible Selective Soldering Nozzle for Ersa, 3.0/6.0 mm, H=20, B22
Compatible Aftermarket New
Engineering Specifications
Reference PN
289546
ID / AD
3.0/6.0
Height
H=20
Base
B14.1/B22
MOQ
1 pc
Lead Time
Availability and lead time are subject to confirmation.
Shipping
DHL / FedEx / UPS / TNT / Air Freight
Send Old Nozzle PhotoRequest Custom SizePart Number LookupAsk Aero for the latest product or batch photo
Compatibility Notice: This is an aftermarket compatible replacement part. Brand names are used only to indicate machine compatibility.
This S Nozzle 3.0/6.0mm H=20 is an aftermarket compatible replacement nozzle for Ersa selective soldering machines. It is designed for selective wave soldering applications that require stable solder flow, heat resistance and precise wetting performance. Reference part number: 289546. Custom sizes and drawings can also be supported.
| Product Type | Selective Soldering S Nozzle |
| Compatible Brand | Ersa |
| Reference Part Number | 289546 |
| ID / AD (Inner/Outer Diameter) | 3.0/6.0 mm |
| Nozzle Height | H=20 |
| Base / Solder Pot Type | B14.1/B22 |
| Legacy Base | B14.1 |
| Nozzle Type | Special |
| Condition | Compatible New / Aftermarket New |
| MOQ | 1 pc |
| Lead Time | Availability and lead time are subject to confirmation. |
| Shipping | DHL / FedEx / UPS / TNT / Air Freight |
| Customization | Available by drawing or sample |
| Compatibility Notice | This is an aftermarket compatible replacement part. Brand names are used only to indicate machine compatibility. |
